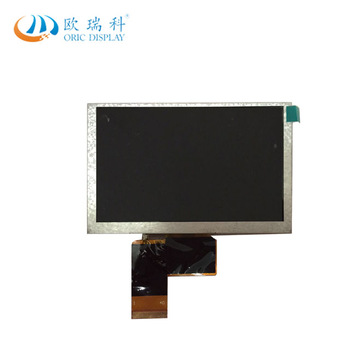

5.0 inch TFT LCD screen
5 inch TFT LCD color LCD module/800x480 dot matrix color screen module
Product model: ORC050AB01H
Resolution: 800 x 480
Interface: RGB
IC or Compatible IC: ILI5960 + ILI6122
Display and Background Color: Color
Screen size: 5 inches
Connection mode: FPC
Shape size: 120.7 *75.9 *3mm
AA area: 108 *64.8mm
Point spacing: 0.045*0.135
Perspective Direction: 12 O'Clock
Color: 16.7M
Voltage: 3.3V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC050AB01H is a 5-inch color LCD module with 800x480 resolution, high picture quality, wide viewing angle, 3.3V voltage, SPI connection. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture, intelligent equipment and so on.
