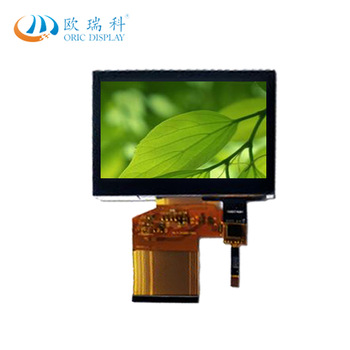

3.5 inch LCD screen
3.5 inch TFT LCD color LCD module/320x240 dot matrix color screen module
Product model: ORC035N02-54-C
Resolution: 320 x 240
Interface: CTP
IC:HX8238D
Display and Background Color: Color
Screen size: 3.5 inches
Connection mode: FPC
Size: 76.9*63.9*3.26 mm
AA area: 52.56*70.08mm
Perspective Direction: 12 O'Clock
Color: 16.7M
Voltage: 3.3V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC035N02-54-C is a 3.5 inch color LCD module with 320x240 resolution, high picture quality, wide viewing angle, 3.3V voltage, CTP connection. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture, intelligent equipment and so on.
3.5 "TFT LCD Color LCD Module/320x480 Dot Matrix Color Screen Module
Product model: ORC035NB06
Resolution: 320 x 480
Interface: MCU
IC or Compatible IC: ILI9488
Display and Background Color: Color
Screen size: 3.5 inches
Connection mode: FPC
Shape size: 54.66 x 84.64 x 3.35 mm
AA area: 48.96*73.44mm
Point spacing: 0.153*0.153
Perspective Direction: 12 O'Clock
Color: 262K
Voltage: 3.3V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC035NB06 is a 3.5 inch color LCD module with 320x480 resolution, high picture quality, wide viewing angle, 3.3V voltage, MCU connection. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture, intelligent equipment and so on.
