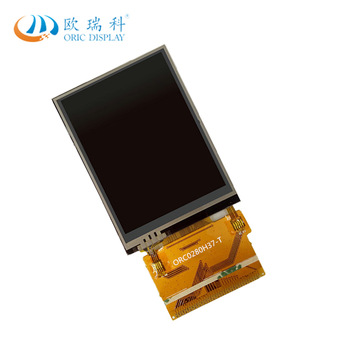

2.8 inch TFT LCD color LCD module/240x400 dot matrix color screen module
Product model: ORC02804N-40
Resolution: 240 x 400
Interface: MUC
IC or Compatible IC: ST7793
Display and Background Color: Color
Screen size: 2.8 inches
Connection mode: FPC
Shape size: 42.8 x 73.3 x 2.46 mm
AA area: 36.72*61.2mm
Point spacing: 165um*165um
Perspective Direction: 12 O'Clock
Color: 262K
Voltage: 2.8V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC02804N-40 is a 2.8-inch color LCD module with 240x400 resolution, high picture quality, wide viewing angle, 2.8V voltage, FPC connection. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture, intelligent equipment and so on.
