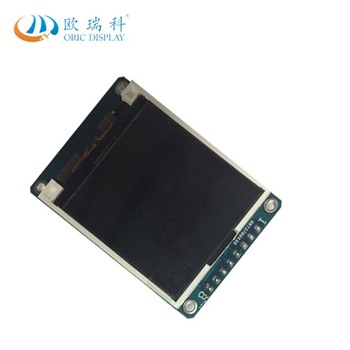

1.77 inch TFT color LCD module/128x160 dot matrix color screen module
Product model: ORC0177-01B
Resolution: 128 x 160
Interface:
IC or Compatible IC: ST7735S
Display and Background Color: Color
Screen size: 1.77 inches
Connection mode: welding
Shape size: 56.0 x 35.0 x 12.35 mm
AA area: 28.03*35.04 mm
Perspective Direction: 12 O'Clock
Voltage: 2.8V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC0177-01B is a 1.77 inch color LCD module with 128x160 resolution, high picture quality, wide viewing angle, welding, 2.8V voltage, supporting horizontal or vertical display. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, intelligent equipment and so on. ORC0177-03 is a 1.77 inch color LCD module 128x160 resolution, high quality, wide angle of view, FPC connection products.
color LCD module/128x160 dot matrix color screen module
1.77 inches TFT
Product model: ORC0177-01B
Resolution: 128 x 160
Interface:
IC or Compatible IC: ST7735S
Display and Background Color: Color
Screen size: 1.77 inches
Connection mode: welding
Shape size: 56.0 x 35.0 x 12.35 mm
AA area: 28.03*35.04 mm
Perspective Direction: 12 O'Clock
Voltage: 2.8V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: -20-70 ℃
Storage temperature: - 30 - 80 ℃
ORC0177-01B is a 1.77 inch color LCD module with 128x160 resolution, high picture quality, wide viewing angle, welding, 2.8V voltage, supporting horizontal or vertical display. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, medical equipment, industrial control equipment, aerospace, intelligent equipment and so on. ORC0177-03 is a 1.77 inch color LCD module 128x160 resolution, high quality, wide angle of view, FPC connection products.
