1.54 inches TFT

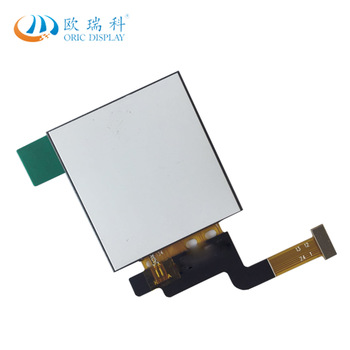

1.54 inch TFT LCD color LCD module/128x128 dot matrix color screen module
Product model: ORC154001F-02
Resolution: 240 x 240
Interface: SPI
IC or Compatible IC: ST7789T
Display and Background Color: Color
Screen size: 1.54 inches
Connection mode: FPC
Shape size: 31.50 x 33.72 x 1.35 mm
AA area: 27.72 *27.72 mm
Perspective Direction: 12 O'Clock
Color: 262K
Voltage: 2.8V
Display type: TFT-LCD color
Optional touch screen:
Working temperature: - 10 - 60 ℃
Storage temperature: - 20 - 70 ℃
ORC154001F-02 is a 1.54-inch color LCD module with 240 x 240 resolution, high picture quality, wide viewing angle, FPC connection, 2.8V voltage, supporting horizontal or vertical display. All materials meet the RoHS standard for environmental protection. This module is widely used in various instruments, communication equipment, intelligent equipment and so on. It is suitable for a variety of intelligent bracelets. Support CTP assembly
