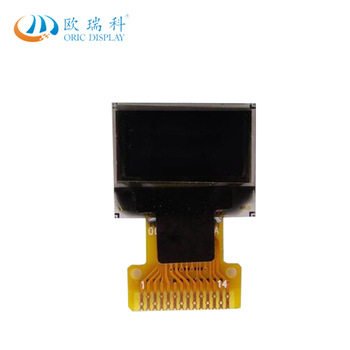

White 0.49 inch OLED display/display module/64x32 dot matrix/IIC/SPI interface
Product model: ORC6432-03
Resolution: 64*32
Interface: 12C
IC or Compatible IC: SSD1306
Display and Background Color: White Characters on Black Background
Screen size: 0.42 inches
Connection mode: FPC
Shape size: 14.5 x 11.6 x 1.2 mm
VA District: mm
AA area: 11.18 *5.58 mm
Point size: 0.155 x 0.155 mm
Point spacing: 0.175 x 0.175 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC6432-03 is a 0.49-inch OLED display screen with white font. 64x32 dot matrix, SSD1306 controller, I2C serial interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
