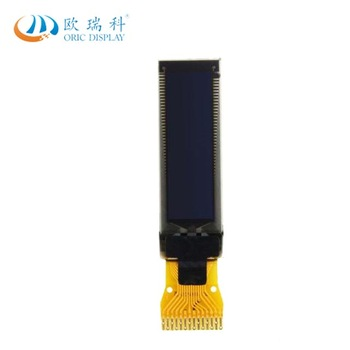

0.69-inch OLED display/display module/96x16 dot matrix/IIC/SPI interface
Product model: ORC9616-01
Resolution: 96 x 16
Interface: 12C
IC or Compatible IC: SSD1306
Display and Background Color: White Characters on Black Background
Screen size: 0.68 inches
Connection mode: FPC
Shape size: 26.3 x 8 x 1.2 mm
VA District: mm
AA area: 17.26 x 3.18 mm
Point size: 0.16 x 0.18 mm
Point spacing: 0.18 x 0.2 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC9616-01 is a 0.68 inch OLED display screen with white font. 96x16 dot matrix, SSD1306 controller, 12C interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
