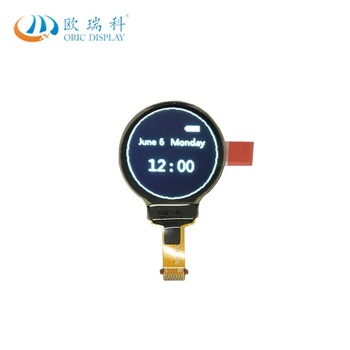

0.75 inch OLED display/display module/128x128 dot matrix/IIC/SPI interface
Product model: ORC128128-04
Resolution: 128*128
Interface: 12C
IC or Compatible IC: SSD1327
Display and Background Color: White Characters on Black Background
Screen size: 0.75 inches
Connection mode: FPC
Shape size: 23.15 x 40.93 x 1.21 mm
VA District: mm
AA area: 17.26 x 3.18 mm
Point size: 0.13 x 0.13 mm
Point spacing: 0.15 x 0.15 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC128128-04 is a 0.75-inch OLED display screen with white font. 128x128 dot matrix, SSD1306 controller, 12C interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
