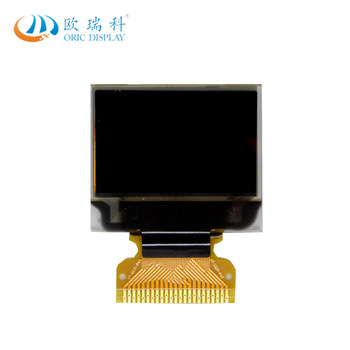

Color 0.95 inch OLED display/display module/180x120 dot matrix/IIC/SPI interface
Color 0.95 inch OLED display/display module/180x120 dot matrix/IIC/SPI interface
Product model: ORC 0095-01
Resolution: 180 x 120
Interface: SPI
IC or Compatible IC: RM67160
Display and Background Color: White Characters on Black Background
Screen size: 0.42 inches
Connection mode: FPC
Shape size: 22.23 x 18.32 x 0.75 mm
Area VA:
AA area: 20.03 *13.36 mm
Point size:
Point spacing:
Visible range: 160 degrees
Color: 16.7M
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -20-70 C
Storage temperature: - 40 - 80 C
ORC0095-01 is a colour 0.95 inch OLED display screen. 180x120 dot matrix, RM67160 controller, SPI interface, 2.8V voltage, OLED self-luminescence does not need backlight characteristics to make it ultra-thin, low power consumption, ultra-high contrast and perspective, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment and so on.
