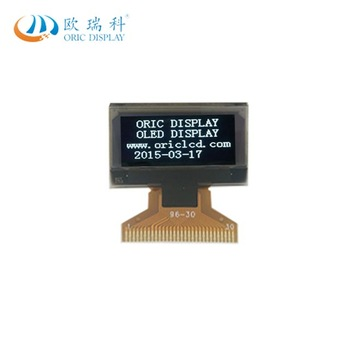

0.96 inch OLED display screen
White 0.96 inch OLED display/display module/128x64 dot matrix/IIC/SPI interface
Product model: ORC12864-03H
Resolution: 128*64
Interface: 80804-bit parallel port, 80808-bit parallel port, I2C, 4-wire serial port SPI
IC or Compatible IC: SSD1306
Display and Background Color: White Characters on Black Background
Screen size: 0.96 inches
Connection mode: FPC
Shape size: 26.7 x 19.26 x 1.5 mm
VA District:
AA area: 21.744 x 10.864 mm
Point size: 0.154 x 0.154 mm
Point spacing: 0.17 x 0.17 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC12864-03H is a 0.96-inch OLED display screen with white font. 128x32 dot matrix, SSD1306 controller, 8080804-bit parallel port, 8080808-bit parallel port, I2C, 4-line serial port SPI interface, 2.8V voltage, OLED self-luminescence does not need backlight, which makes it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet RoHS standards. This module is widely used in various instruments, intelligent devices, etc. ORC12864-30B is a blue font 0.96 inch OLED display screen. 128x32 dot matrix, SSD1306 controller, 8080804 bit parallel port, 8080808 bit parallel port, I2C, 4-line serial port SPI interface, 2.8V voltage, OLED self-luminescence does not need. The backlight has the characteristics of ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
OLED Display Manufacturer
White 0.96 inch OLED display/display module/64x128 dot matrix/IIC/SPI interface
Product model: ORC64128-ZH
Resolution: 64*128
Interface: 12C
IC or Compatible IC: SH1107
Display and Background Color: White Characters on Black Background
Screen size: 0.96 inches
Connection mode: FPC
Shape size: 14.0 *28.0 *1.227 mm
Area VA: 11.86 *22.74 mm
AA area: 10.86 *21.74 mm
Point size: 0.15 x 0.15 mm
Point spacing: 0.17 x 0.17 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC64128-ZH is a 0.96-inch OLED vertical screen display with white fonts. 64x128 dot matrix, SH1107 controller, 12C interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
