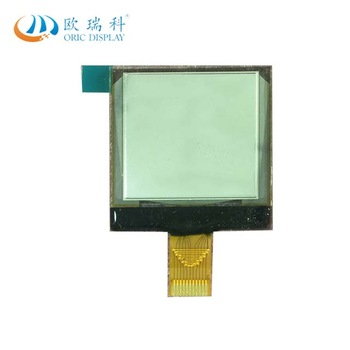

White 1.5 inch OLED display/display module/128x128 dot matrix/IIC/SPI interface
Product model: ORC128128-01
Resolution: 128*128
Interface: 12C
IC or Compatible IC: SSD1327Z
Display and Background Color: White Characters on Black Background
Screen size: 1.5 inches
Connection mode: FPC
Shape size: 33.8 x 36.5 x 1.22mm
Area VA: 28.86 *28.86 mm
AA area: 26.86 x 26.86 mm
Point size: 0.19 x 0.19 mm
Point spacing: 0.21 x 0.21 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC128128-01 is a 1.5-inch OLED vertical screen display with white fonts. 128x128 dot matrix, SSD1327Z controller, 12C interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and visual angle, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
