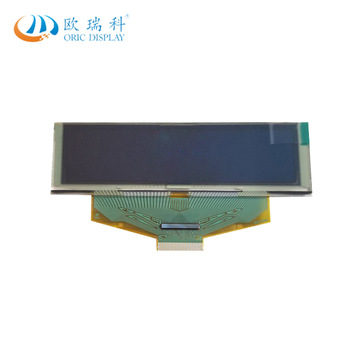

Yellow 5.5 inch OLED display/display module/256x64 dot matrix/IIC/SPI interface
Yellow 5.5 inch OLED display/display module/256x64 dot matrix/IIC/SPI interface
Product model: ORC2566403-Z
Resolution: 256 x 64
Interface: 80804-bit parallel port, 80808-bit parallel port, I2C, 4-wire serial port SPI
IC or Compatible IC: SSD1322
Display and Background Color: Yellow Character with Black Background
Screen size: 5.5 inches
Connection mode: FPC
Shape size: 146 x 65 x 2.0 mm
VA District:
AA area: 135.65 *33.89mm
Point size: 0.50 x 0.50 mm
Point spacing: 0.53 x 0.53 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC2566403-Z is a 5.5-inch OLED vertical screen display with white font. 256x64 dot matrix, SSD1322 controller, 808084-bit parallel port, 808080-8-bit parallel port, I2C, 4-line serial port SPI interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment and so on.
