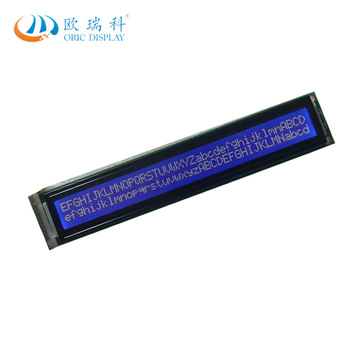

40 X 2 Character LCD Display Panel
40 * 2 characters
40x2 monochrome character LCD module/module/white characters on blue background
Product Model: ORC4002A--SBDM
Resolution: No
Interface: no
"IC or compatible IC:
SPLC780D + SPLC100"
Display and Background Color: White Characters on Blue Background
Screen size: No
Connection mode: needle arrangement
Size: 182 x 33.5 x 14 mm
Area VA: 152.4 x 17mm
AA District:
Point size: No
Point spacing: No
Visual range: 6:00
Color: no
Voltage: 5V
Display Type: LCD LCD Display
Optional Touch Screen: No
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C
ORC4002A-SBDM is a 40-character 2-line monochrome character LCD module, 5V voltage, blue LED backlight, which can adjust brightness through resistance behind the board, STN LCD, negative display, brightening is a white font blue background, working temperature is - 20-70 C, wide angle of view, built-in English and Japanese text library, needle arrangement connection, optional connector, all materials meet the RoHS standard of environmental protection. This module is widely used in various instruments and intelligent devices.
