16 Character LCD Display Panel
16x1 character
16x1 monochrome character LCD module/module/yellow-green background, blue-black characters
Product model: ORC1601A-SYDM
Resolution: No
Interface: no
IC or Compatible IC: KS0066
Display and Background Color: Yellow, Green, Blue and Black Characters
Screen size: No
Connection mode: needle arrangement
Shape size: 80 x 36 x 11 mm
Area VA: 65.5 x 14.5 mm
AA District:
Point size: No
Point spacing: No
Visual range: 6:00
Color: no
Voltage: 5V
Display Type: LCD LCD Display
Optional Touch Screen: No
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C

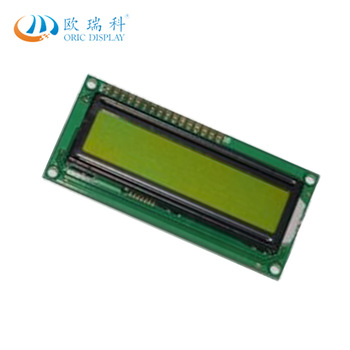

ORC1601A-SYDM is a 16-character x1-line monochrome character LCD module, 5V voltage, blue LED backlight, which can adjust brightness through the resistance behind the board, STN LCD, yellow-green, blue-black font yellow-green background after lighting, working temperature is - 20-70 C, wide angle of view, built-in English and Japanese text library, needle arrangement connection, optional connector, all materials meet the environmental protection requirements of RoHS standard. This module is widely used in various instruments and intelligent devices.
